VEHICLE
REAL TIME TRACKING
|
- real time remote vehicle
tracking;
- monitor: location,
parameters of movement;
- real time fuel
monitoring;
- trip (route)
visualization ;
- data transmitting by
GSM/GPRS network;
- outside GSM/GPRS
coverage module store in internal memory all information
about vehicle activity.
|
|
.jpg) |
1.
Key Features:
1.1 In general
- all
world coverage;
- all
type of vehicle monitoring;
-
wireless data transmitting by GSM/GPRS network;
- LCV, cars fuel tank
monitoring;
- not need to install
additional fuel level sensor;
- not need to remove
fuel tank for fuel sensor installation.
1.2
Monitoring:
-
vehicle real location;
-
parameters of vehicle movement: date/time, speed,
acceleration/deceleration;
-
vehicle trip (vehicle route);
- fuel level in fuel
tank;
- fuel consumption,
fueling and fuel drain.
1.3 Benefits:
- Most economical way
embed fuel monitoring function for cars, VANs, LCV in
vehicle monitoring system.
- Provide fuel
monitoring function on passenger cars, “JEEPs”,VANs,“pick-up”
or light trucks (Light Commercial Vehicles) on which the
use of professional fuel level sensors is not reasonable
due to technical or economic reason.

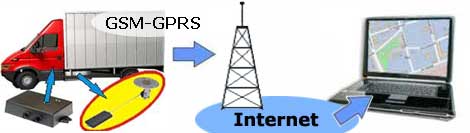

2. Monitoring Structure:
.jpg)
2.1 Main Components:
|
(vehicle GPS
tracking module) |
GuardMagic VF2 module in
full automatic mode collect, immediate transmit to monitoring station or store
in internal non-volatile memory and posterior transmit to monitoring station
information:
-
vehicle location,
-
parameters of vehicle moving (date/time, speed,
acceleration/deceleration);
- fuel level in
fuel tank;
- panic button
pressing.
GuardMagic FV2
module connected to GuardMagic DAFS -fuel sensor adapter
|
|
|
Guardmagic DAFS
read the analog signal from the car regular resistive
type floating fuel level sensor, valuate, processing
input signal and converts it into digital form: EIA-485
communication interface; |
-
Communication network (GSM/GPRS
+ Internet)
|
Communication channel for
the sending information from vehicle module to Personal
Computer.
|
|
|
Monitoring station:
-
collect
all information from vehicle
modules, store this information in
data base,
- analysis received
information,
- generate the
series of special reports and diagrams;
-
visualizate
vehicle location and vehicle trip electronics maps,
- monitor fuel
consumption, fueling and fuel drain.
Monitoring Station
(monitoring service) consist
of server (or personal computer) and special monitoring software:
-
PowerTrace
monitoring service;
-
VehicleStation;
-
FleetStation.
|
2.2 GuardMagic VF2 module advantages:
- installation
on LCV, cars, etc;
- outside
GSM/GPRS coverage module store in internal
memory all information about vehicle activity;
-
Internal memory
for 110 000
records;
- GPS monitoring
(location, speed);
-
acceleration/deceleration monitoring;
- monitoring
fuel level in fuel tank;
|
-
transport and
special machinery mode;
-
active "stand by"
mode;
-
sleep mode;
-
customer module
setting;
- engine start
remote blocking;
-
panic signal
transmitting;
- power supply
12 /24 volts;
|
2.3 GuardMagic DAFS adapter advantages:
- installation
on passenger cars, “JEEPs”,VANs,“pick-up” or
light trucks (Light Commercial Vehicles);
- Wide voltage
input range;
- Valuation of
the input signal;
|
- Input signal
processing;
- Internal
programming filter;
- Programming
the operating parameters;
- High
resolution;
- Dual output:
analog and digital;
- power supply
12 volts;
|
GuardMagic DAFS allows by
very economical way embed fuel monitoring function for cars,
VANs, LCV in vehicle monitoring system. |
