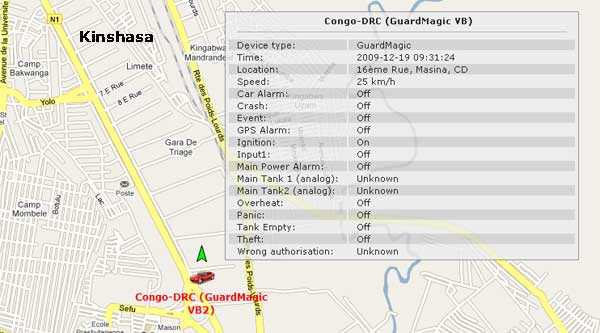

You can see the parameters of vehicle movement and
status of external sensors:
-
"Speed" - show the
current vehicle speed - 25 km/h;
-
"Car Alarm" - show
status of car alarm system - not activated;
-
"Crash" - show
that all is OK (if will be road accident "crash"
will be ON);
-
"Event" - if
driver will push event button, "Event" will be
ON;
-
"GPS Alarm" - all
data from GPS receiver is correct (status of GPS
signal and GPS receiver);
-
"Ignition" -
ignition switch is in run position;
-
"Input 1" -
customer electrical circuit (or sensor) is not
activate;
-
"Main Power Alarm"
- show that vehicle power source (power source
circuit or battery) is connected and in good
condition;
-
"Main Tank1" and
"Main Tank2" - is not connected to module;
-
"Overheat" -
engine over heat sensor is not activate (engine
temperature is normal);
-
"Panic" - panic
button is not pushing;
-
"Tank Empty"- fuel
tank empty sensor is not activate;
-
"Theft" - show
that vehicle is moving in standard situation
(vehicle is not stolen);
-
"Wrong
authorisation" - have to show if will be alien
driver (in current situation this functionality
was not activate).
|
|

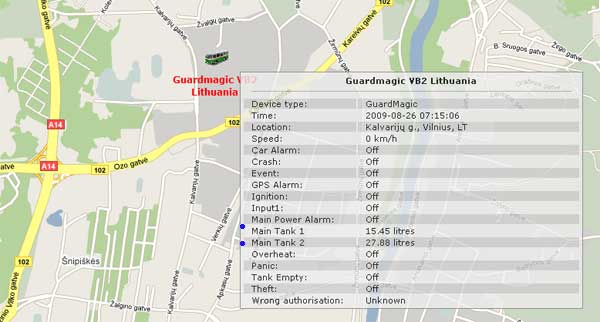

In real time you can see the fuel volume in each
vehicle fuel tanks (in image - two fuel tank bus):
 |
|

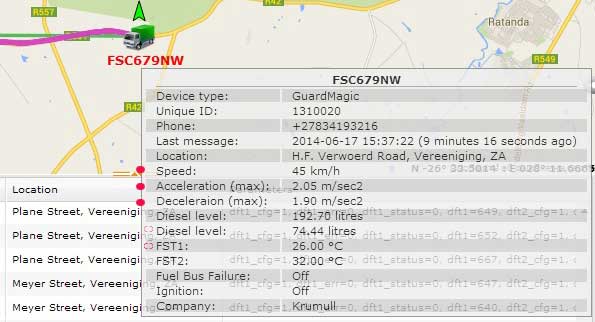

In real time you can see the parameters of vehicle
movement (driving style): speed, acceleration,
deceleration:
 |
|
